UR2212A

<body>



Two Sets Receivers (Active)




</body>

UR2212A

<body>

Two Sets Receivers (Active)

</body>

RCA-60RJ45

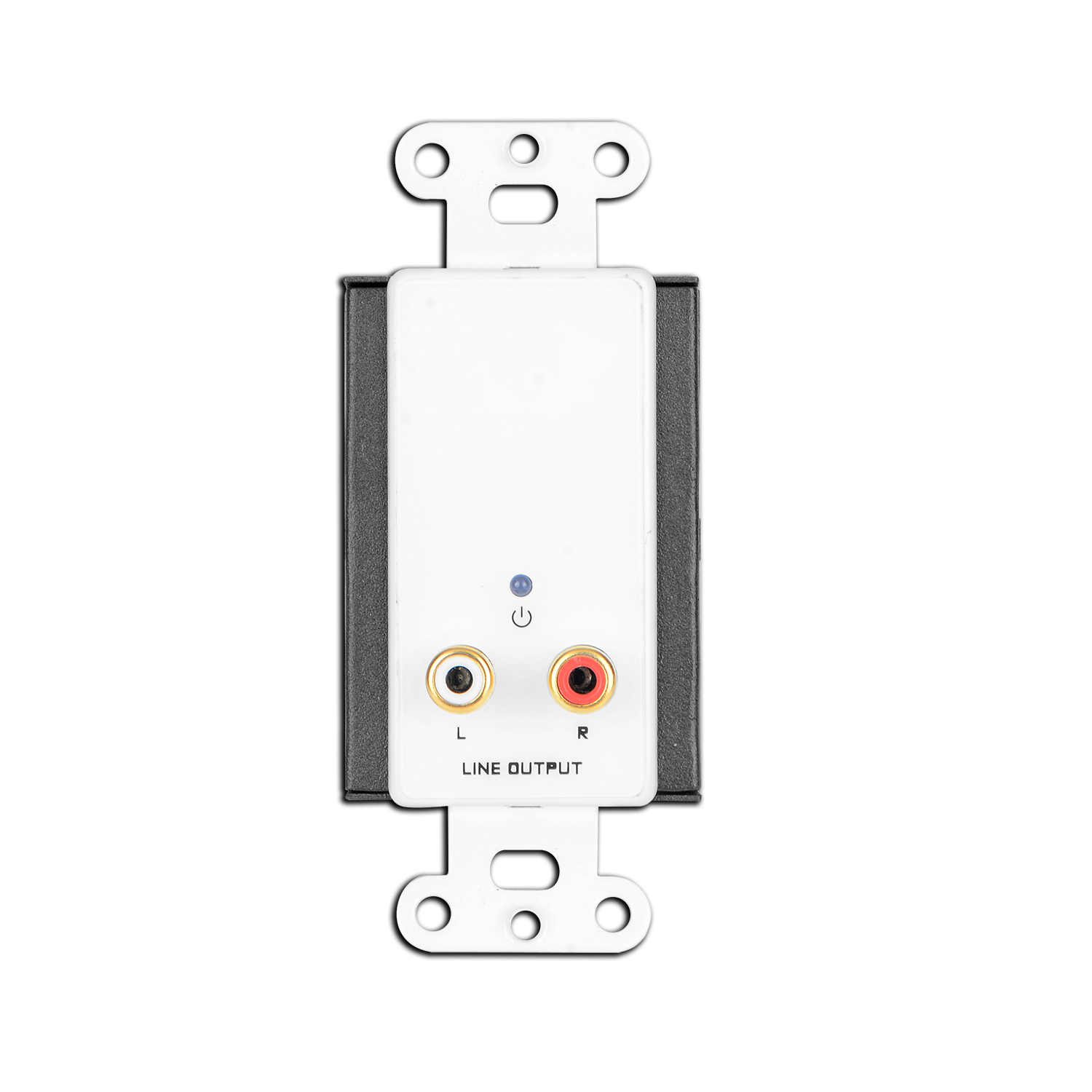

UR2212A module is designed to provide RCA jacks on the front panel, and receives the signal from Pair B, C of UTP CAT5 cable. The signal from Pair B routs to RCA(L) and Pair C routs to another RCA(R). There is an additional RJ-45 jack on the back panel, to connect with other CSP receiver modules, so all three audio pairs A,B,C and power pair D could pass through both RJ-45 jacks. And the system allows the chain connection up to 10 receiver modules.
UR2212A module could be powered from a 24VDC power supply by using the rear panel terminal block, and the power also could be provided to all the connected modules by Pair D of UTP CAT5 cable. When the power is supplied to this module, the front panel LED will light on.

Features

•Stereo RCA Jack Audio Outputs
•Signals from Pair B(L) and Pair C(R).
•Source Loop
•Power can be linked to the removable terminal
•Blue LED Indicates Module is Powered
•Daisy chain topology

Specifications

•Input: CSP UTP RJ45
•Connection: RJ45
•Twisted Pair Used: B(Left), C(Right) pairs
•Outputs: 100 Ω Unbalanced
•Output Connector: RCA Jacks
•Output Level: RCA: -10 dBV
•THD+N: < 0.005%
•Frequency Response: 20 Hz ~ 20 KHz
•Crosstalk: < 90 dB (1 kHz); < 75 dB (20 Hz to 20 kHz)
•Power Requirement: 24 VDC @ 55 mA; 155 mA (Max.)
•Dimensions: 43mm x 66.5mm x 40mm (WxHxD)
